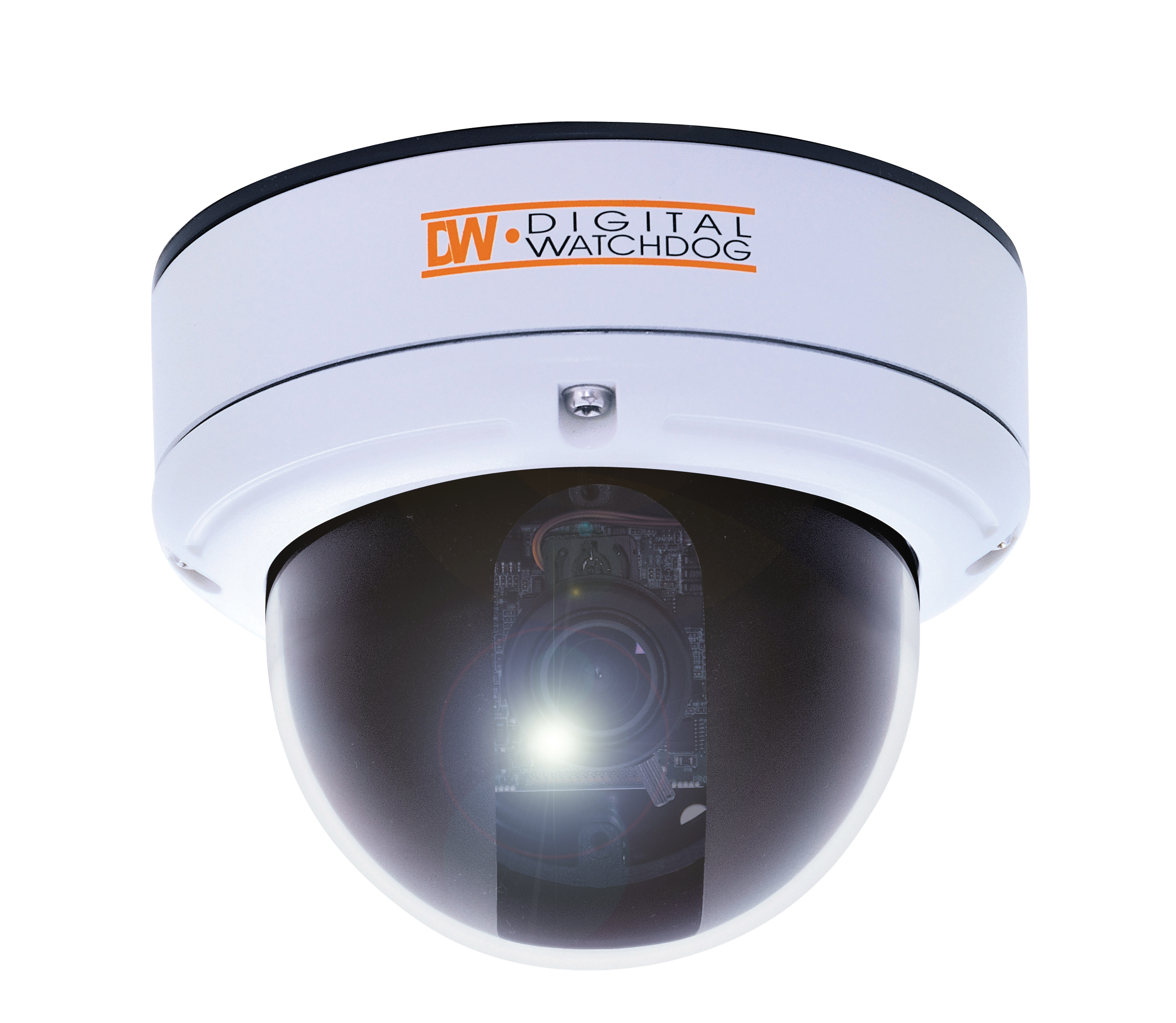

- The extreme cold weather dome camera V3363DH ensures excellent color sensitivity and high resolution in both day and night applications. This camera is part of our Starlight Series, which offers super low light imaging for any application. The V3363DH offers a unique Digital Slow Shutter feature that increases the length of time the shutter remains open to collect additional ambient light, illuminating typically dark environments. It has been designed with a built-in heater, allowing the camera to withstand temperatures as low as -40 degrees Fahrenheit.
|
| Features
|
-
1/3" Sony Super HAD II CCD
- 560 TV Line
- 3.3~12mm Varifocal Auto Iris Lens
- Easy Icon Driven OSD Menu
- 3D-DNR (3D Digital Noise Reduction)
- Star-Light (Super Low Light Technology)
- DRC (Dynamic Range Compressor)
- Electronic Day and Night
- HME (Highlight Masking Exposure)
- 32X Digital Zoom
- Secondary Video-BNC Output for Easy Installation
- Auto Sensing 24 VAC/12 VDC with Line Lock
- AGC (Auto Gain Control)
- BLC (Back Light Compensation)
- AWB (Auto White Balance)
- Programmable Privacy Zone (6) & Motion Detection (8)
- Designed to Accommodate Junction Box Installation
|
| Specifications |
| Camera TYPE |
Color, Extreme Cold Weather Camera |
| Camera Mount |
Surface |
| Image Device |
Sony Super HAD II CCD | | Image Size |
1/3 | | Image Pixels Total |
811 (H) x 508 (V) | | Image Pixels-Effective |
|
| Scanning System |
768 (H) x 494 (V) | | Scanning Horizontal |
15,734 Hz (Frequency Internal Mode) | | Scanning Vertical |
59.94 Hz (Frequency Internal Mode) |
| Minimum Scene Illumination |
F1.2: 0.14 Lux, x256 STARLIGHT: 0.0005 Lux in Color |
| Functions |
BLC, AGC, Sens-Up, AWB, Motion Detection, Privacy Zone, 3D-DNR, HME, Star-Light, Digital Zoom, Dual Voltage, Mirror Image, Negative Image, Icon Menu, DRC,
|
| Lens |
3.3 ~ 12mm Varifocal Auto Iris Lens |
| Horizontal Resolution |
560 TV Lines [Color], 580 TV Lines [B/W] |
| Video Output |
CVBS: 1.0Vp-p 75Ω |
| Operating Temperature |
-40°C ~ 55°C (-40°F ~ 131°F) | | Operating Humidity |
 |
| Power Requirements |
Auto Sensing 12VDC / 24VAC (60Hz)
| | Power Consumption |
12VDC: 1.8W (Heater OFF), 13.6W (Heater ON)
24VAC: 2.4W (Heater OFF), 14.7W (Heater ON) |
| Dimensions (W x H) |
140.1 x 109.6mm (5.515 |
| Certificatons Held |
CE, FCC, RoHS |
| Warranty (Limited) |
5 Year |
| Weight |
1.6 lbs |
| |
 |
 |
 |
 |
 |
| Manual |
 |
NA |
NA |
NA |
NA |
| Brochure |
NA |
NA |
NA |
NA |
NA |
| Quick Start Guide |
NA |
| Specification Sheet |
 |
-
1. Corner Mount Bracket for V1, V3, and V4 Camera Housing. Must be used with DWC-V1WM.
Part Number: DWC- V1CNM
Specification Sheet:
RID :

|
-
2. Pendant Mount Adapter for Extention
Part Number: V1CMAD
RID :

|
|
